In-Line Optimization of SSP Manufacturing in the Broadfield Process
Part 5 of a 5-part blog series: “Minimizing Heavy Metals in Superphosphate Manufacturing”
Part 1 of the blog series introduced the problems that heavy metals present in the SSP manufacturing process as well as a refresher of SSP production in the Bradley Broadfield Process. Part 2 provided a background to the environmental considerations that must be addressed in SSP manufacturing. Part 3 presented rock blending as the way to minimize heavy metals in the process. Part 4 discussed the process for determining the ideal rock blend. Click Here to download the complete article in pdf format as published by BCInsight Ltd in Fertilizer International Nov|Dec 2023, issue 517, pp. 53-57.
In-line process optimization
Actual process conditions within the Broadfield superphosphate unit are only fully measurable during full scale production. In-line process sampling and testing is non-disruptive and the ideal way to maximize plant profitability by ensuring continuous production with minimal shutdowns.
Ian Hancock, Eng Tech MIET IEng FIMechE, of Bradley Pulverizer Elected Board Chair of IMechE Process Industries Division
Bradley Pulverizer is pleased to announce the appointment of Ian Hancock as the newest Chair of the IMechE Process Industries Division Board. Hancock assumes the 2-year role after serving as an active member for 5 years and also as Chair of the IMechE Bulk Materials Handling Committee for the past 10 years. He has consistently demonstrated a commitment to excellence and a passion for IMechE’s mission, making him an ideal choice for the role of Chair.
Ian Hancock fulfills all criteria for Board Chair including involvement in STEM development in secondary schools and colleges, being an active fellow of the institute, and member for over 13 years. As Chair of the Board, he will play a vital role in guiding the Process Industries Division of IMechE, which is concerned with primary production processes that are either continuous or batch produced. With an extensive knowledge of the industry and a deep understanding of IMechE’s mission, Ian Hancock is well-positioned to drive the institution’s growth and make a positive impact within the industry.
Top Considerations When Selecting a Milling and Classification System
There are 5 key questions to consider when selecting a milling and/or classification system. Customers looking to improve or replace a current system typically have the answers on-hand or at least know the current conditions of their milling process and have defined performance goals. However, those looking for new systems often have information available about the materials to be milled, and the desired end product specifications, but may not factor in the importance of the questions below. There is quite a bit more information we require to provide a complete project proposal, but we’ve found that the answers to the 5 questions below significantly help in developing the quote, and often helps to determine the viability for manufacturing and commercial profitability.
Using a Divorced Classifier to Generate Multiple Products Simultaneously from an Airswept Mill System
Demand is on the rise for milling systems that can simultaneously produce multiple end products that meet different size specifications from a single feed continuous processing system. The Divorced Classifier from Bradley Pulverizer is often the perfect solution to meet these demands, in fact, there are divorced classifiers currently in operation that are simultaneously producing 4 or more different sized commercial products!
Traditionally, airswept pendulum roller mills are employed to pulverize rigid/friable materials into fine powders from 50% passing 150 microns to 99.9% passing 30 microns whereas vertical shaft impact crushers are employed to crush rigid and friable raw materials to coarse grit specifications. Impact crushers require a capitol cost to purchase and have high energy demands to operate and cannot produce high yields of fine particles. Divorced classification milling systems, on the other hand, can produce high yields of both fine powders and coarse grit in one operation, in one machine, with a much lower demand for energy consumption. In fact, the same amount of power is required to generate fine powders as it is to generate both fine powders and coarse grits. Yes, that’s right, zero additional power is required to generate 2 products simultaneously vs. just one!
Ian Hancock is Presenting “Air Classification From Industrial Processing To Specialized Applications” at the Powder & Bulk Solids Conference
Powder & Bulk Solids Conference Tech Talk: Air Classification From Industrial Processing to Specialized Applications
Ian Hancock, Eng Tech MIET IEng FIMechE; Vice President, Sales & Operations – Bradley Pulverizer
Presented by Ian Hancock, Eng Tech MIET IEng FIMechE; Vice President, Sales & Operations – Bradley Pulverizer
Wednesday, April 26th at 1:30 in the Tech Theater
Air classification is a common processing technique employed for the separation of coarse products from fines. While traditionally used in the minerals industry for heavy-duty applications, the need for classification of specialized powdered materials and for hygienic applications is growing. This session will chronical the evolution of the Bradley Pulverizer Windsifter Air Classifier from its historic roots in industrial mineral processing to the newly designed stainless steel classifier, ideal for highly specialized applications. Topics presented will include:
Operational Considerations for Optimal SSP Manufacturing in the Broadfield Process
Part 5 of a 5-part blog series: “The Bradley Broadfield superphosphate process”
The Broadfield process has remained a mainstay of the global phosphate industry since its introduction in the 1930s. In Part 1, Ian Hancock, Vice President Sales & Operations, Bradley Pulverizer, provides an introduction to the Bradley Superphosphate process, in Part 2 we explore the origins of superphosphate manufacturing , Part 3 outlines the chemical process for SSP manufacture, and Part 4 explains the overall system and processes. Click Here to download the complete article in pdf format as published by BCInsight Ltd in Fertilizer International Sept|Oct 2022, issue 510, pp. 31-35.
Acidulation in the Broadfield Den is a continuous process that requires good coordination between the various feed streams and equipment so they operate together in equilibrium. However, as ideal process conditions are almost never met in practice, Bradley’s Broadfield Dens and Belt Dens are designed to operate effectively at between 60-110 percent of their rated output. This provides operators with the necessary flexibility to adjust for changes in feed composition and/or plant conditions while ensuring that consistent end-product quality is maintained. Some of the key operational considerations are highlighted below.
Rock blend. Individual phosphate rock sources and shipments will have different parameters for total phosphorus content, reactivity rates, impurity levels (i.e., cadmium), fluorine volatilization, and odorous compounds. To adjust for these differences, rocks from different sources are blended to establish the desired chemical composition and achieve the necessary ‘operational window’. This is important as the chemistry of the rock blend will directly influence the equilibrium of the entire system, including milling fineness, acid concentrations, mixer speeds, den residence time, and granulation conditions etc.
A Spotlight on Joe Tittermary: Presenting at NSSGA’s Pulverized Minerals Division (PMD) Annual Meeting – March 15, 2023
Joe Tittermary, Technical Business Development Manager at Bradley Pulverizer will be speaking at NSSGA’s Pulverized Minerals Division (PMD) Annual meeting at the 2023 NRMCA, NSSGA & PCA Joint Annual Convention on March 15th. He will be discussing options available for efficiently meeting demanding particle size specifications for both new milling and air classification systems as well as plant retrofits. Additionally, he will focus on the capability to simultaneously produce multiple streams/cuts of products with differing particle size specifications.
A Spotlight on Nikheel Mistry: Presenting “Reducing Emissions in the Size Reduction and Drying Industry” at IMechE Seminar – 07 March 2023
Nikheel Mistry, Project & Process Commissioning Manager at Bradley Pulverizer, will be speaking at IMechE’s Bulk Handling for Net-Zero conference on March 7, 2023. His presentation “Reducing Emissions in the Size Reduction & Drying Industry” will cover three primary topics:
- Efficient milling techniques
- Efficient drying techniques
- Optimized plant design for reduced emissions
Overview:
Now, more than ever, the UK bulk materials industry is pushing to operate in a more efficient and environmentally friendly way. Companies need to be more sustainable in their approaches and consider how to decarbonize processes, whilst reducing risk, cost and emissions. There is also a need to look at waste reduction across bulk materials handling processes and how we can create a circular economy within the UK to support net-zero.
Superphosphate Acidulation in the Broadfield Den
Part 4 of a 5-part blog series: “The Bradley Broadfield superphosphate process”
The Broadfield process has remained a mainstay of the global phosphate industry since its introduction in the 1930s. In Part 1, Ian Hancock, Vice President Sales & Operations, Bradley Pulverizer, provides an introduction to the Bradley Superphosphate process, in Part 2 we explore the origins of superphosphate manufacturing , and Part 3 outlines the chemical process for SSP manufacture. Click Here to download the complete article in pdf format as published by BCInsight Ltd in Fertilizer International Sept|Oct 2022, issue 510, pp. 31-35.
The Broadfield Den is a turnkey system specifically designed to continuously acidulate inert phosphate rock into water soluble superphosphate (Figure 1). In detail, it is actually comprised of a series of individual and interlocking equipment systems. Ultimately, proper calibration and maintenance of this entire system is required to ensure continuous production and profitable operation.
The information provided in this article assumes ‘typical working conditions’ based on general operational experience. In practice, however, each Broadfield Den is individually engineered for optimal output. Units are designed to meet the conditions specified by the end user, as well as the results of laboratory trials and testing, with confirmation of raw material composition being of primary importance.

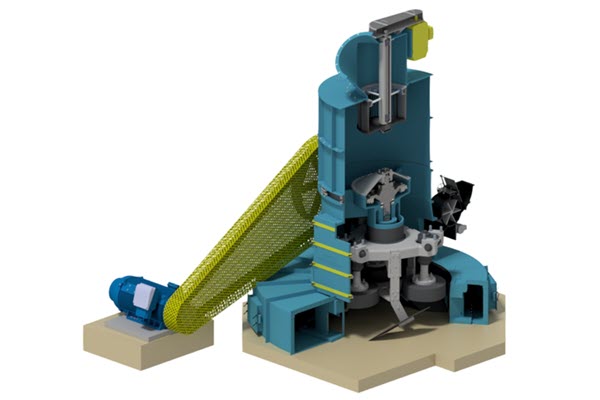

Superphosphate production begins with the grinding of insoluble phosphate rock (mainly fluorapatite, Ca3(PO4)2CaF2) to a fine powder. This upstream process is carried out by a milling system, such as the Bradley BM20 Airswept Roller Mill, to generate phosphate rock particles of specified fineness (Figure 2). Typically, for sedimentary rock, the specified size is 75-90 percent passing 75µm (200 Tyler mesh), whereas igneous rock, due to its lower reactivity, is typically ground finer to 90+ percent passing 53µm.
Making Single Superphosphate (SSP) and Triple Superphosphate (TSP) in Broadfield Process Units
Part 3 of a 5-part blog series: “The Bradley Broadfield superphosphate process”
The Broadfield process has remained a mainstay of the global phosphate industry since its introduction in the 1930s. In Part 1, Ian Hancock, Vice President Sales & Operations, Bradley Pulverizer, provides an introduction to the Bradley Superphosphate process, and in Part 2 we explore the origins of superphosphate manufacturing . Click Here to download the complete article in pdf format as published by BCInsight Ltd in Fertilizer International Sept|Oct 2022, issue 510, pp. 31-35.
Single Superphosphate (SSP) is made by reacting non-soluble fluorapatite (the mineral present within phosphate rock) with sulphuric acid to produce soluble monocalcium phosphate and calcium sulphate. Gaseous by-products from the reaction include and (released from associated calcium carbonate in the rock). The overall chemical reaction is summarized in equation 1 below.
2Ca5(PO4)3F+6H2SO4+3H2O → 6CaSO4+3Ca(H2PO4)2∙H2O+CaF2
